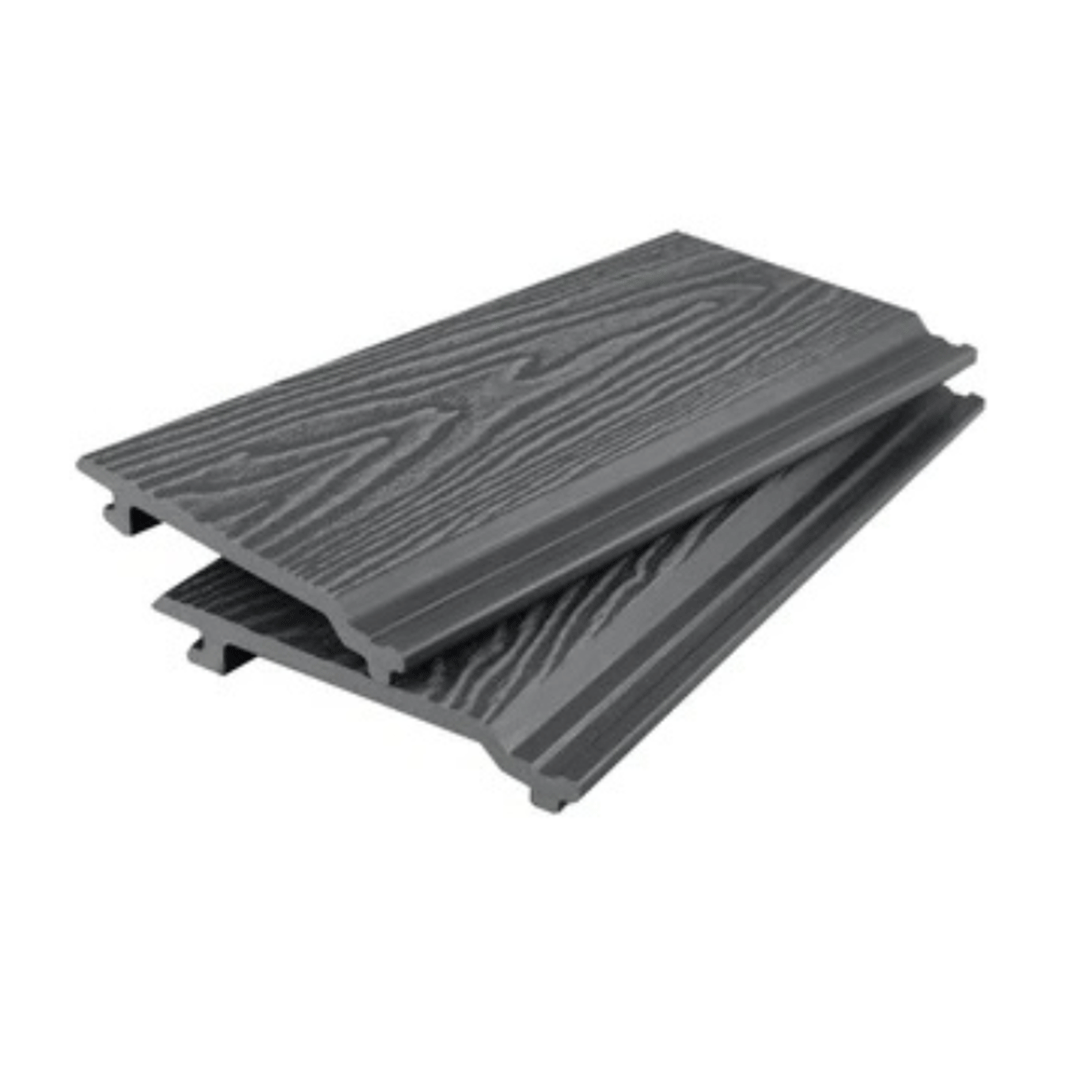

Woodgrain Composite Wall Cladding – Birch Grey

The simple shiplap ‘click’ system makes installation so straight forward that any project can be undertaken quickly. You first need to install vertical battens to the area to be cladded (one metre apart will suffice), then screw the starter clips at the base of the battens. The first cladding board sits in to the clip and then you click the boards together, screwing in to the battens as you go to hold them securely to the wall.

The cladding can be installed horizontally or vertically, depending on your preference.

We do advise that you pilot drill the boards prior to screwing in to the battens.

To finish your corners, we sell matching L Trims which can be fixed easily with either screws or invisibly using a bonding agent such as CT1.

Board Dimensions:

3.6m long, 135mm wide (when joined together), 155mm wide (overall), 20mm deep

To calculate the amount of lengths required, 2 boards is the equivalent to 1 square metre.

In addition to the boards themselves, you will need starter clips for the bottom row of cladding and screws for the rest. These are available separately.
